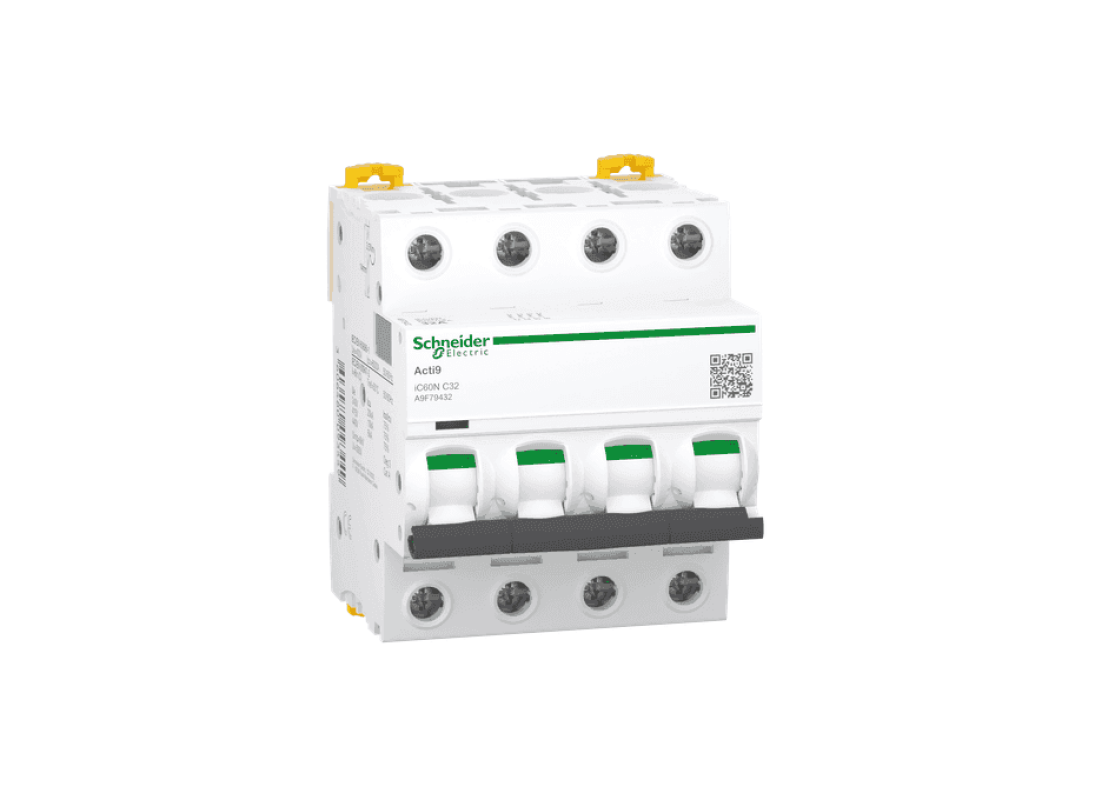

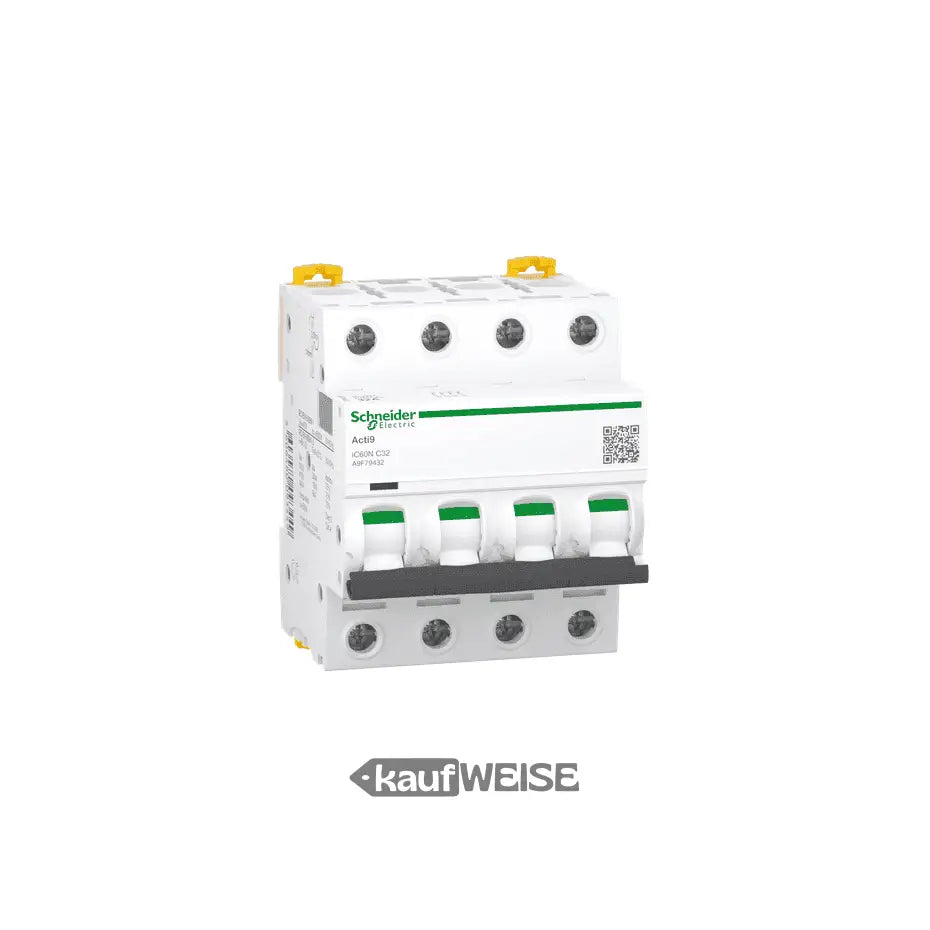

Schneider Acti 9 iC60N miniature circuit breaker – 4P, 32A, C-curve
Schneider Acti 9 iC60N miniature circuit breaker – 4P, 32A, C-curve
In accordance with § 19 para. 1 of the German VAT Act (UStG), no VAT is charged.
Only 1 left in stock!
It will arrive on ! Order within .
Couldn't load pickup availability
- SHIPPING VIA DHL / GERMAN POST
- 14 DAY RETURN POLICY
- EXCELLENT CUSTOMER SERVICE
Product description
Product description
Schneider Acti 9 iC60N miniature circuit breaker – 4P, 32A, 6kA, C-curve
The Schneider Acti 9 iC60N miniature circuit breaker offers reliable protection for your electrical systems. Featuring high-quality thermo-magnetic tripping technology, it protects against overloads and short circuits and is suitable for both AC and DC networks. This 4-pole (4P) switch with a rated current of 32 A and C-curve characteristics is ideal for distribution applications in residential, commercial, and industrial installations.
Main features
- Series: Acti 9
- Product name: Schneider Acti 9 4P circuit breaker
- Number of poles: 4 poles (fully protected)
- Rated current: 32 A
- Trigger characteristics: C-curve
-
Breaking capacity:
- 6 kA according to EN/IEC 60898-1 at 400 V AC
- 10 kA according to EN/IEC 60947-2 at 380–415 V AC
- 36 kA according to EN/IEC 60947-2 at 12–133 V AC
- Network compatibility: AC and DC
- Standards: IEC 60898-1, EN 60898-1, IEC 60947-2, EN 60947-2
- Assembly: DIN rail
- Protection class: IP20
Dimensions and weight
- Width: 72 mm (4 modules)
- Height: 85 mm
- Depth: 78.5 mm
- Weight: approx. 0.5 kg
Special features
- Toggle switch: With clearly visible trigger indicator
- Mechanical life: Up to 20,000 switching cycles
- Electrical life: Up to 10,000 switching cycles
- Operating temperature: -35 °C to +70 °C
Scope of delivery
- 1x Schneider Acti 9 iC60N circuit breaker
Areas of application
Ideal for control cabinets, residential and commercial installations, and industrial applications. It offers maximum safety and efficiency for your electrical installation.
